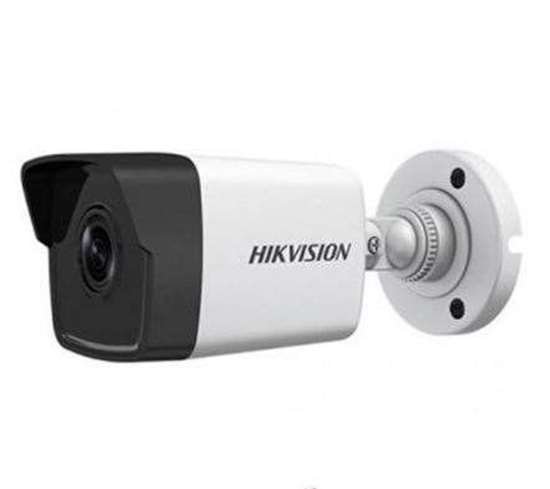

Hikvision 4mp Bullet Network Ip Camera Ds-2cd1043goe-i

Description

4MP Bullet Network Camera | DS-2CD1043GOE-I

High quality imaging with 4 MP resolution
Efficient H.265+ compression technology
Clear imaging against strong back light with 120 dB WDR
Water and dust resistant (IP67)
EXIR 2.0, advanced infrared technology with long IR distance

•     Camera
•     Image Sensor: 1/3″ Progressive Scan CMOS
•     Min. Illumination: Color: 0.028 Lux @ (F2.0, AGC ON)
•     Shutter Speed: 1/3 s to 1/100,000 s
•     Slow Shutter: Yes
•     Day &Night: IR Cut Filter
•     Wide Dynamic Range: Digital WDR
•     Angle Adjustment: Pan: 0° to 360°, tilt: 0° to 180°, rotate: 0° to 360°
•Lens
•Lens: Fixed lens, 2.8/4 mm
•Aperture: F2.0
•FOV: 2.8 mm, horizontal FOV 100°, vertical FOV 55°, diagonal FOV 117° 4 mm, horizontal FOV 77°, vertical FOV 42°, diagonal FOV 88°
•     Lens Mount: M12
•     Illuminator
•     IR Range: Up to 30 m
•     Wavelength: 850nm
•     Video
•     Max. Resolution: 2560 × 1440
•     Main Stream: 50Hz: 20fps (2560 × 1440, 2304 × 1296, 1920 × 1080, 1280 × 720) 60Hz: 20fps (2560 × 1440, 2304 × 1296, 1920 × 1080, 1280 × 720)
•     Sub Stream: 50Hz: 20fps (640 × 480, 640 × 360, 320 × 240) 60Hz: 20fps (640 × 480, 640 × 360, 320 × 240)
•     Video Compression: Main stream: H.265+/H.264+/H.265/H.264 Sub-stream: H.265/H.264/MJPEG
•     H.264 Type: Baseline Profile/Main Profile
•     H.265 Type: Main Profile
•     Video Bit Rate: 32 Kbps to 8 Mbps
•     Smart Feature-Set
•     Basic Event: Motion detection, video tampering alarm, exception (illegal login)
•     Region Of Interest: 1 fixed region for main stream
•     Linkage Method: Upload to FTP, notify surveillance center, send email
•     Image
•     Image Enhancement: BLC, HLC, 3D DNR
•     Image Setting: Saturation, brightness, contrast, sharpness, AGC and white balance adjustable by client software or web browser
•     Day/Night Switch: Day/Night/Auto/Schedule
•     SNR: > 50dB
•     Network
•     Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
•     API: ONVIF (PROFILE S), ISAPI, SDK
•     Security: Password protection, complicated password, IP address filter, Watermark, HTTPS encryption, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, 802.1X authentication (EAP-MD5)
•     Simultaneous Live View: Up to 6 channels
•     User/Host: Up to 32 users,3 levels: Administrator, Operator and User
•     Client: iVMS-4200, Hik-Connect, Hik-Central
•     Web Browser: IE8+, Chrome 41.0-44, Firefox30.0-51, Safari8.0-11
•     Interface
•     Communication Interface: 1 RJ45 10M/100M self-adaptive Ethernet port
•     General
•     General Function: Anti-flicker, heartbeat, mirror, privacy mask
•     Reset: Reset via web browser and client software
•     Startup And Operating Conditions: -30 °C to +60 °C (-22 °F to +140 °F), Humidity 95% or less (non-condensing)
•     Storage Conditions:  -30 °C to 60 °C (-22 °F to 140 °F), humidity 95% or less (non-condensing)
•     Power Supply: 12 VDC ± 25%, Φ 5.5 mm coaxial power plug, reverse polarity protection; PoE (802.3af, class 3)
•     Power Consumption And Current: 12 VDC, 0.35 A, max. 4.2 W; PoE (802.3af, 36 V to 57 V), 0.2 A to 0.1 A, max. 4.2 W
•     Material: Front cover: metal, back cover: plastic
•     Dimensions: Camera: 66.2 mm × 67.8 mm × 177.6 mm (2.6″ × 2.7″ × 7″) With package: 216 × 121 × 118 mm (8.5″ × 4.8″ × 4.6″)
•     Weight: Camera: approx. 280 g (0.6 lb.) With package: approx. 501 g (1.1 lb.)
•     Approval
•     EMC: 47 CFR Part 15, Subpart B; EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014; AS/NZS CISPR 32: 2015; ICES-003: Issue 6, 2016; KN 32: 2015, KN 35: 2015
•     Safety: UL 60950-1, IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IS 13252(Part 1):2010+A1:2013+A2:2015, IEC/EN 60950-1
•     Chemistry: 2011/65/EU, 2012/19/EU, Regulation (EC) No 1907/2006
•     Protection: Ingress protection: IP67 (IEC 60529-2013)
