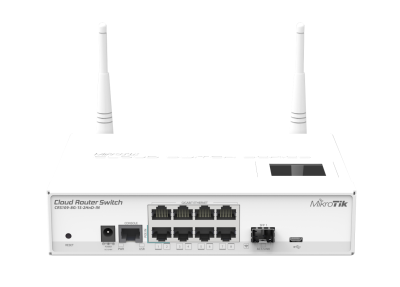

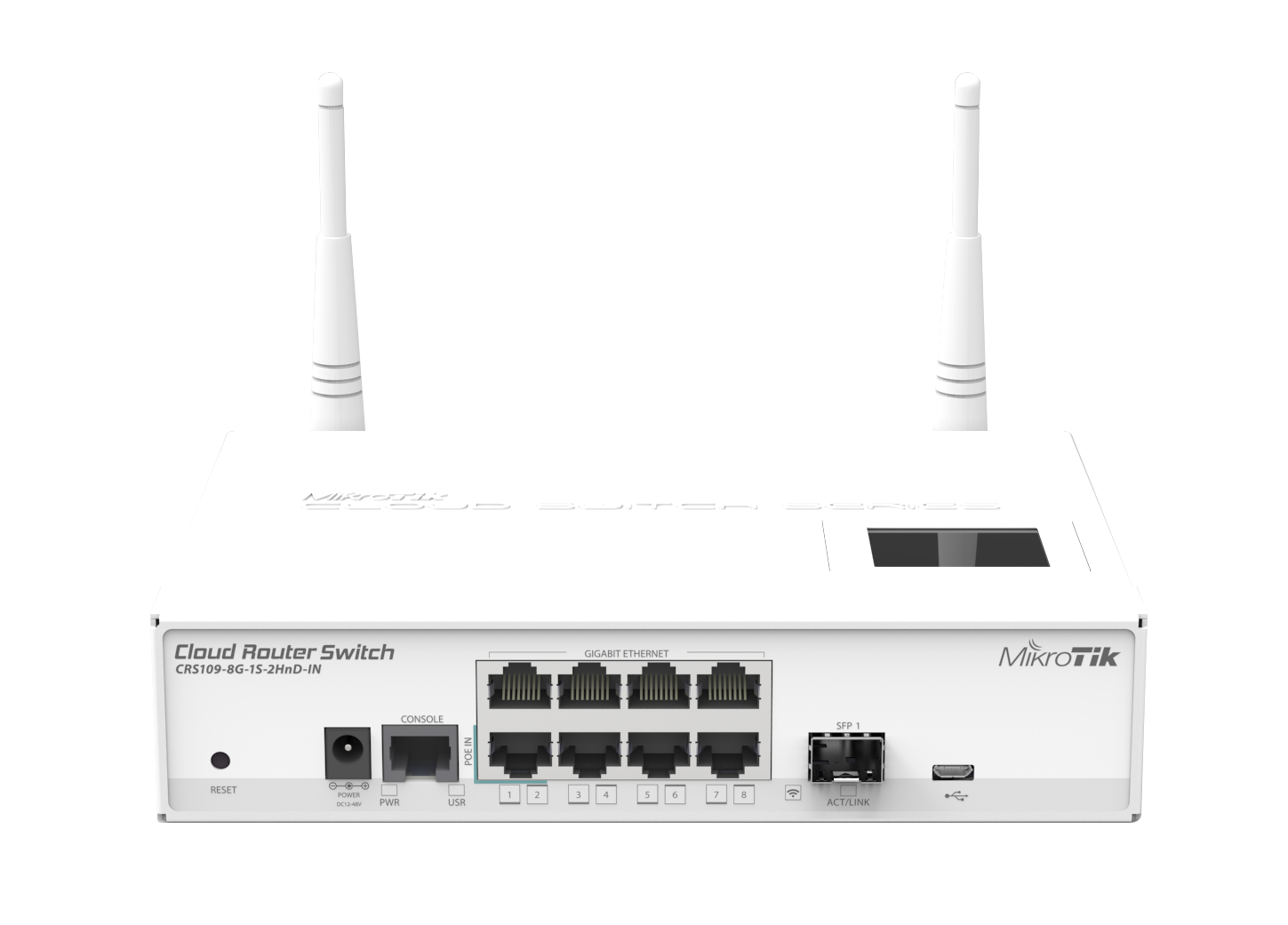

Mikrotik Switch Crs109-8g-1s-2hnd-in

Description

CRS109-8G-1S-2HnD-IN
8x Gigabit Smart Switch, 1x SFP cage, LCD, 802.11b/g/n Dual Chain wireless, 600MHz CPU, 128MB RAM, Metal desktop case, RouterOS L5, supports 10-57V, 802.3af/at compliant

Cloud Router Switch 109-8G-1S-2HnD-IN is new “small size low cost” member of our CRS series. It comes with eight Gigabit Ethernet ports and high power 2.4GHz wireless. Product supports 10-57V and is 802.3af/at compliant!

Our CRS series combines the best features of a fully functional router and a Layer 3 switch, is powered by the familiar RouterOS. All the specific Switch configuration options are available in a special Switch menu, but if you want, ports can be removed from the switch configuration, and used for routing purposes.
Specifications
Details
Product code     CRS109-8G-1S-2HnD-IN
Architecture     MIPSBE
CPU     AR9344
CPU core count     1
CPU nominal frequency     600 MHz
Dimensions     200x145x45mm
License level     5
Operating System     RouterOS
Size of RAM     128 MB
Storage size     128 MB
Storage type     NAND
Tested ambient temperature     -40°C to 65°C

Powering
Details
PoE in     Passive PoE
802.3af support     yes
PoE in input Voltage     10-57 V
Number of DC inputs     2 (PoE-IN, DC jack)
DC jack input Voltage     10-57 V
Max power consumption     13 W
Wireless
Details
Antenna gain dBi for 2.4 GHz     4
Wireless 2.4 GHz standards     802.11b/g/n
Wi-Fi generation     4
Wireless 2.4 GHz Max data rate     300 Mbit/s
Wireless 2.4 GHz number of chains     2
Wireless 2.4 GHz chip model     AR9344
Ethernet
Details
10/100/1000 Ethernet ports     8
Fiber
Details
SFP DDMI     yes
SFP ports     1
Peripherals
Details
Serial port     RJ45
Number of USB ports     1
USB Power Reset     Yes
USB slot type     microUSB type AB
Max USB current (A)     1.5
Other
Details
PCB temperature monitor     Yes
Voltage Monitor     Yes
Wireless specifications
2.4 GHz     Transmit (dBm)     Receive Sensitivity
1MBit/s     29     -97
11MBit/s     28     -90
6MBit/s     30     -96
54MBit/s     25     -76
MCS0     30     -96
MCS7     23     -73
Included parts

24V 0.8A power adapter
USB OTG cable
