Description

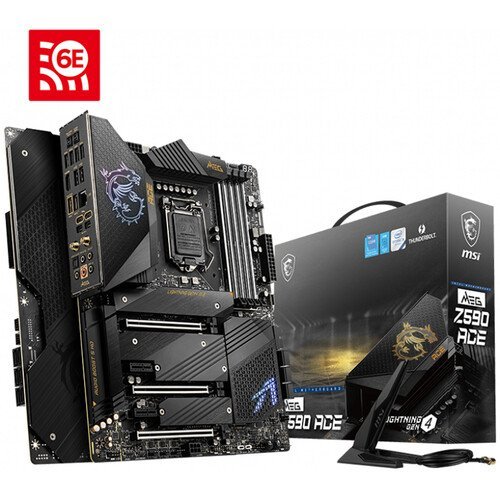

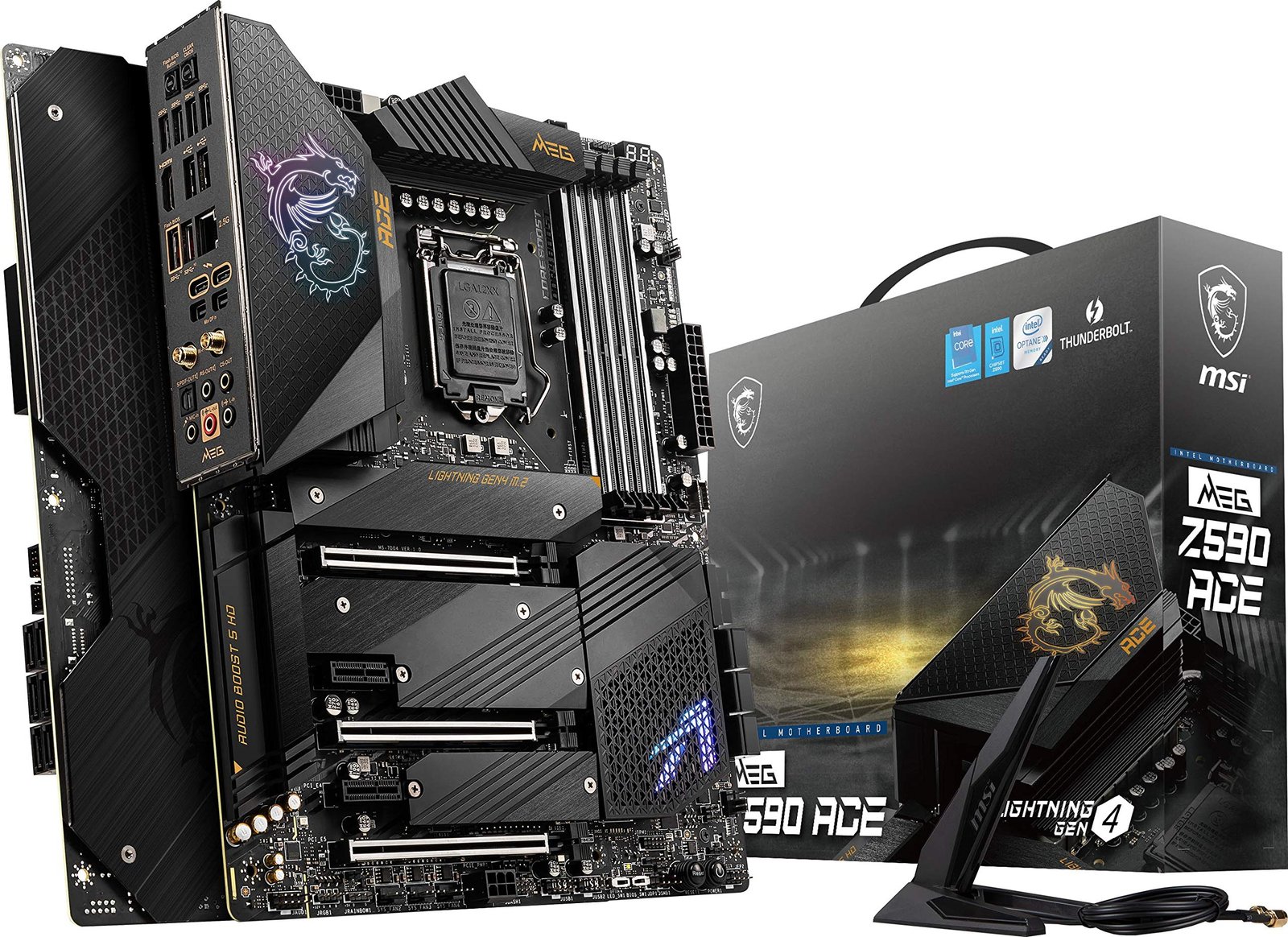

he MSI MEG Z590 ACE LGA 1200 ATX Motherboard is a high-end powerhouse designed for overclockers, gamers, and content creators seeking top-tier performance. Packed with premium features and robust power delivery, it caters to enthusiasts who push their systems to the limit.
Powerhouse Performance:
-
Supports Latest Intel Processors: This motherboard works with 11th and 10th generation Intel Core processors on the LGA 1200 socket, allowing you to leverage the latest Intel architecture for demanding applications.
-
Robust Power Delivery: The 16+2+1 phase digital power delivery system with 90A SPS ensures stable power even during overclocking, enabling you to squeeze every ounce of performance from your CPU.
-
Overclocking Friendly: With dedicated voltage control options and cooling solutions, the MEG Z590 ACE empowers enthusiasts to push their processors beyond stock speeds for maximum performance gains.
Unmatched Connectivity:
-
High-Speed Networking: Wi-Fi 6E support delivers blazing-fast wireless speeds, perfect for online gaming and seamless streaming. Onboard 2.5Gbps LAN provides a reliable wired connection for low-latency tasks.
-
Dual Thunderbolt 4 Ports: These next-generation ports offer incredible 40 Gbps data transfer speeds, ideal for connecting high-performance storage devices and future-proofing your system.
-
Multiple USB Options: With a plethora of USB 3.2 Gen 2 ports, you can connect a wide range of peripherals like external drives, headsets, and more, ensuring extensive expandability.
-
Quadruple M.2 Slots: Take advantage of the latest NVMe PCIe Gen 4 storage solutions for blazing-fast boot times, application loading, and file transfers. The M.2 Shield Frozr keeps your SSDs cool to prevent performance throttling.
Designed for Enthusiasts:
-
Premium Audio: The built-in Audio Boost 5 with the ALC4082 audio processor and ESS DAC delivers immersive and crystal-clear sound for an exceptional audio experience.
-
Mystic Light RGB: Personalize your system’s aesthetics with MSI’s Mystic Light RGB technology. This motherboard features multiple RGB headers and a dedicated addressable LED strip, allowing you to create stunning lighting effects.
-
Advanced Cooling Solutions: The MEG Z590 ACE utilizes a comprehensive cooling solution, including Frozr Heatsinks and an aluminum backplate, to keep your CPU, VRMs, and M.2 SSDs cool under heavy loads.
Overall, the MSI MEG Z590 ACE LGA 1200 ATX Motherboard is a feature-rich powerhouse aimed at enthusiasts who demand the best performance and limitless customization options.
PROCESSOR
- Supports 10th Gen Intel® Core™ Processors, 11th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors1
- Processor socket LGA1200
- Please go to intel.com for compatibility information.
CHIPSET
Intel® Z590 Chipset
MEMORY
- 4x DDR4 memory slots, support up to 128GB1
- Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel® CPU (by JEDEC & POR)1
- Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel® CPU (by JEDEC & POR)1
- Max overclocking frequency:
- 1DPC 1R Max speed up to 5600 MHz
- 1DPC 2R Max speed up to 4800+ MHz
- 2DPC 1R Max speed up to 4400+ MHz
- 2DPC 2R Max speed up to 4000+ MHz
- Supports Dual-Channel mode
- Supports non-ECC, un-buffered memory
- Supports Intel® Extreme Memory Profile (XMP)
- Please refer to www.msi.com for more information on compatible memory
EXPANSION SLOTS
- 3x PCIe x16 slots
- Support x16/x0/x4, x8/x8/x4, x8/x4+x4/x4
- PCI_E1 & PCI_E3 slots (From CPU)
- Support up to PCIe 4.0 for 11th Gen Intel® CPU
- Support up to PCIe 3.0 for 10th Gen Intel® CPU
- PCI_E5 slot (From Z590 chipset)
- Supports up to PCIe 3.0
- 2x PCIe 3.0 x1 slots (From Z590 chipset)
MULTI-GPU
- Supports 2-Way NVIDIA® SLI™ Technology
- Supports 3-Way AMD® CrossFire™ Technology
ONBOARD GRAPHICS
- 1x HDMI™ 2.0b with HDR port, supports a maximum resolution of 4K 60Hz1
- Available only on processors featuring integrated graphics.
THUNDERBOLT 4
Intel®JHL8540 Thunderbolt™ 4 Controller
- 2x Thunderbolt™ 4 (USB-C) ports on the back panel
- Support up to 40Gbps transfer rate with Thunderbolt devices
- Support up to 20Gbps transfer rate with USB4 devices
- Support up to 10Gbps transfer rate with USB 3.2 devices
- Support up to 5V/3A ,15W power charging
- Each port can daisy-chain up to three Thunderbolt 4 devices or five Thunderbolt 3 devices
- Supports up to 8K display (need to connect the DisplayPort of the discrete graphics card to the Mini DisplayPort Input port on the back panel)
STORAGE
- 6x SATA 6Gb/s ports (from Z590 chipset)
- 4x M.2 slots (Key M)
- Supports Intel® Smart Response Technology for Intel Core™ processors
- SATA2 will be unavailable when installing M.2 SATA SSD in the M2_2 slot.
- SATA5 & SATA6 will be unavailable when installing M.2 SATA/PCIe SSD in the M2_3 slot.
- M2_4 bandwidth will switch from x4 to x2 when PCI_E5 slot is inserted.
- Before using Intel® Optane™ memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website.
RAID
- Supports RAID 0, RAID 1, RAID 5, RAID 10 for SATA storage devices
- Supports RAID 0, RAID 1, RAID 5 for M.2 NVMe storage devices
USB
- Intel® Z590 Chipset
- 3x USB 3.2 Gen 2 10Gbps ports (2 Type-A port on the back panel, 1 Type-C internal connector)
- 6x USB 3.2 Gen 1 5Gbps ports (4 Type-A port on the back panel, 2 ports available through internal USB connector)
- 2x USB 2.0 Type-A ports on the back panel
- Hub-GL850G
- 4x USB 2.0 ports through internal USB connectors
AUDIO
Realtek® ALC4082 Codec + ESS SABRE9018Q2C Combo DAC/HPA
- 7.1-Channel High Definition Audio
- Supports S/PDIF output
LAN
- 1x Intel® I225V 2.5Gbps LAN controller
WIFI & BLUETOOTH
Intel® Wi-Fi 6E AX210
- The Wireless module is pre-installed in the M.2 (Key-E) slot
- Supports MU-MIMO TX/RX, 2.4GHz/5GHz/6GHz1 (160MHz) up to 2.4Gbps
- Supports 802.11 a/ b/ g/ n/ ac/ ax
- Supports Bluetooth® 5.22, FIPS, FISMA
- Wi-Fi 6E 6GHz depend on country regulations support and will be ready in WIN10 21H1.
- Bluetooth 5.2 will be ready in WIN10 21H1.
INTERNAL CONNECTORS
- 1x 24-pin ATX main power connector
- 2x 8-pin ATX 12V power connectors
- 1x 6-pin PCIE power connector
- 6x SATA 6Gb/s connectors
- 4x M.2 slots (M-Key)
- 1x USB 3.2 Gen 2 10Gbps Type-C connector
- 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
- 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
- 1x 4-pin CPU fan connector
- 1x 4-pin water-pump fan connector
- 6x 4-pin system fan connectors
- 1x Front panel audio connector
- 2x System panel connectors
- 1x Chassis Intrusion connector
- 1x TPM module connector
- 1x Tuning Controller connector
LED FEATURE
- 1x EZ LED Control switch
- 1x 2-Digit Debug Code LED
- 4x EZ Debug LED
- 1x 4-pin RGB LED connector
- 2x 3-pin RAINBOW LED connectors
- 1x 3-pin JCORSAIR LED connector
BACK PANEL PORTS
- Clear CMOS Button
- USB 3.2 Gen1 5Gbps (Type-A)
- USB 2.0
- 2.5G LAN
- Thunderbolt 4 40Gbps (Type-C)
- Wi-Fi / Bluetooth
- HD Audio Connectors
- Flash BIOS Button
- HDMI™
- USB 3.2 Gen2 10Gbps (Type-A)
- Mini DisplayPort Input (for Thunderbolt passthrough)
- Optical S/PDIF-Out
DIMENSIONS
- 12 in. x 9.6 in. (30.5 cm x 24.4 cm)
- ATX Form Factor
MOUNTING
9 mounting holes
OPERATING SYSTEM
- Support for Windows® 10 64-bit
